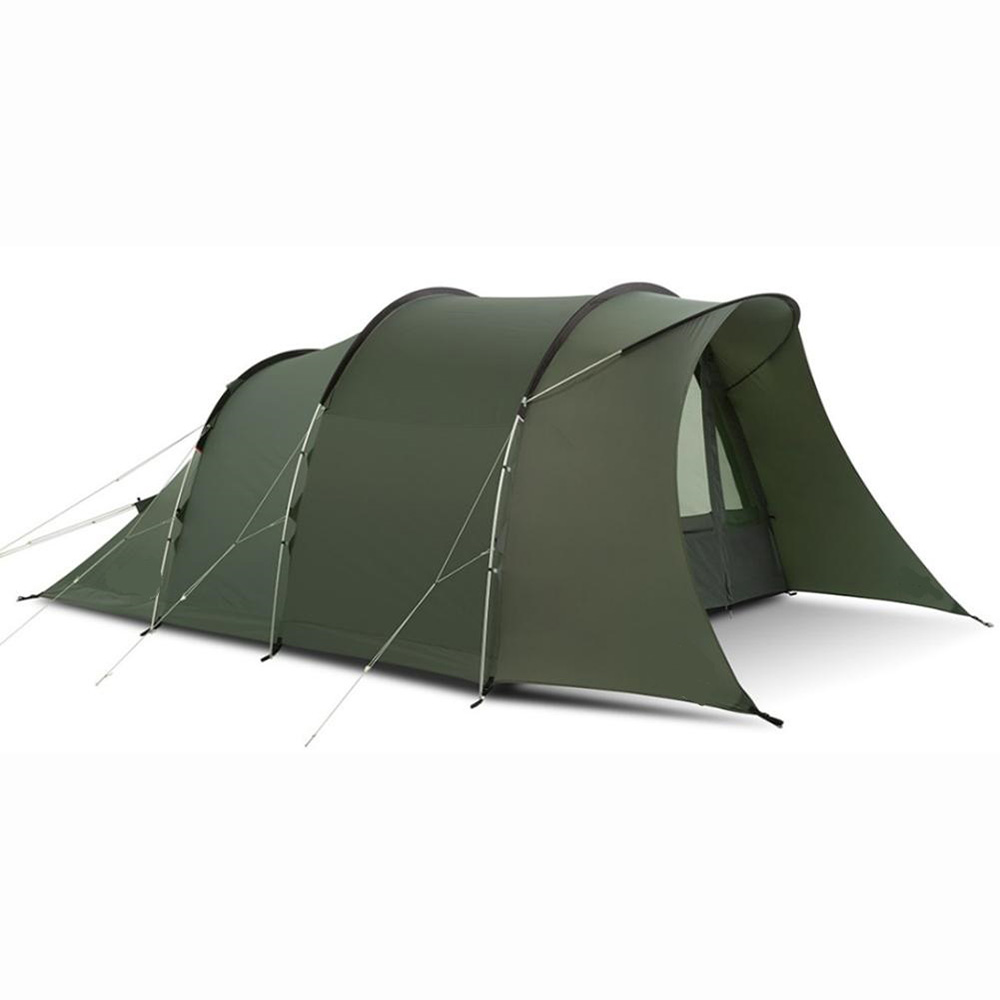

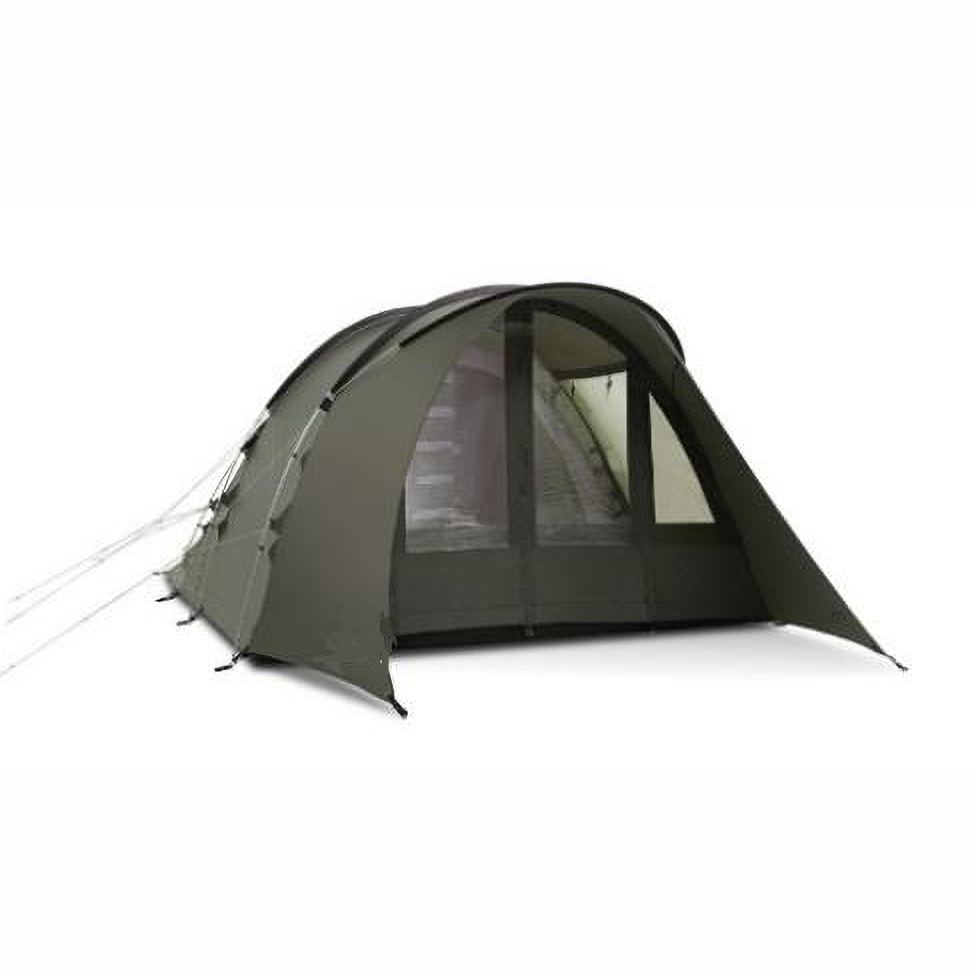

The NC-FT-0015 Blackout Family Tunnel Tent is designed for family camping, car camping and extended outdoor stays where separate sleeping areas and a practical communal space are important.
Featuring a two-bedroom and one-living-area configuration, the tent provides a flexible layout for families who want to separate sleeping arrangements from shared activities and equipment storage. The outer tent measures 530 × 325 × 205 cm, with an inner tent dimension of 220 × 300 × 190 cm.
The flysheet uses 210T polyester with a small-grid construction, a full blackout coating and a specified PU 5000 mm hydrostatic head. A 210D polyester Oxford outer floor with PU 5000 mm coating provides an additional ground barrier, while the inner tent combines breathable 75D 190T polyester with 50 g/m² B3 mesh.
The tunnel structure is supported by aluminum poles, including three Ø14 mm main poles and additional poles for the vestibule and entrance configuration. The tent also includes 32 V-shaped stakes and 16 reflective guy lines for outdoor anchoring.
For outdoor brands, importers and camping equipment distributors, NastoCamp offers OEM / ODM development options covering fabrics, coatings, layouts, colors, branding and packaging.
Specifications
|
Specification |
Details |
|---|---|
| Product Code | NC-FT-0015 |
| Product Type | Family Tunnel Tent |
| Layout | Two Bedrooms + One Living Area |
| Construction | Double-Layer Tent |
| Outer Tent Dimensions | 530 × 325 × 205 cm |
| Inner Tent Dimensions | 220 × 300 × 190 cm |
| Flysheet | 210T Small-Grid Polyester with Full Blackout Coating |
| Flysheet Waterproof Rating | PU 5000 mm |
| Outer Tent Floor | 210D Polyester Oxford, PU 5000 mm |
| Inner Tent Fabric | 75D 190T Breathable Polyester |
| Inner Tent Mesh | B3 Mesh, 50 g/m² |
| Inner Tent Floor | 75D 190T Polyester, PU 3000 mm |
| Main Poles | Ø14 mm Aluminum Poles × 3 |
| Vestibule Pole | Ø8.5 mm Aluminum Pole |
| Additional Aluminum Poles | Ø22 mm × 200 cm and Ø19 mm × 120 cm, functions to be confirmed |
| Stakes | 18 cm V-Shaped Stakes × 32 |
| Guy Lines | Ø3.5 mm Reflective Guy Lines × 16 |
| Packed Dimensions | 70 × 50 × 50 cm |
| Packing Quantity | 1 Tent / Carton |
| Product Weight | To Be Confirmed |
Key Features
Two Bedrooms and One Living Area
The two-bedroom layout allows families to organize sleeping arrangements separately while retaining a shared living area for relaxation, equipment storage and everyday campsite activities.
Full Blackout Flysheet
The 210T polyester flysheet features a black coating designed to block incoming light, helping create a darker interior during daylight hours.
PU 5000 mm Flysheet Specification
The outer fabric has a specified PU 5000 mm hydrostatic head, providing a defined material-level waterproof performance requirement for buyers evaluating rain protection.
Spacious Tunnel Structure
The 530 × 325 × 205 cm outer dimensions provide a substantial sheltered footprint, with a tunnel configuration that separates living and sleeping functions.
Aluminum Pole Support System
Three Ø14 mm aluminum main poles form the primary tunnel structure, complemented by additional poles for the vestibule and entrance arrangement.

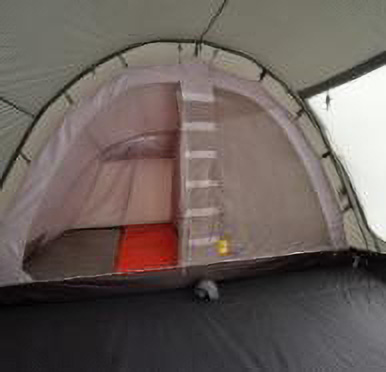

Breathable Inner Tent with B3 Mesh
The inner tent combines breathable polyester fabric with 50 g/m² B3 mesh to support ventilation and help limit insect entry through mesh-covered openings.
Separate Ground Materials
The outer tent floor uses 210D polyester Oxford with PU 5000 mm coating, while the inner tent floor uses 75D 190T polyester with PU 3000 mm coating.
Reflective Guy Lines and Ground Anchoring
Sixteen reflective guy lines and thirty-two V-shaped stakes are included for anchoring and tensioning the tent during setup.
Ideal For | Applications
-
Family camping trips
-
Car camping and drive-in campsites
-
Extended campsite stays
-
Holiday parks and recreational camping grounds
-
Outdoor family travel
-
Camping equipment retail collections
-
Private-label family tent programs
-
OEM / ODM family camping tent development
Customization Options
For OEM / ODM projects, NastoCamp can discuss the following options:
-
Flysheet fabric specifications and color selection
-
Blackout coating configurations
-
Waterproof coating requirements
-
Inner tent dimensions and bedroom layout
-
Vestibule and entrance configurations
-
Mesh material and ventilation arrangements
-
Aluminum pole specifications
-
Groundsheet and floor material options
-
Guy lines, stakes and accessories
-
Brand logo and private labeling
-
Carrying bags and retail packaging
-
Custom development based on buyer requirements
All proposed changes are subject to technical evaluation, material availability and project requirements.
View More About NastoCamp
Explore NastoCamp’s OEM / ODM tent manufacturing services and quality management capabilities for outdoor brands, importers and distributors.
FAQ
What is the layout of the NC-FT-0015 family tent?
The NC-FT-0015 features two bedrooms and one living area, providing separate sleeping spaces and a shared area within a tunnel-shaped camping shelter.
What are the tent dimensions?
The outer tent measures 530 × 325 × 205 cm, while the specified inner tent dimensions are 220 × 300 × 190 cm.
Does the tent have a blackout flysheet?
Yes. The flysheet uses 210T polyester with a full blackout coating designed to reduce light entering the tent.
What is the waterproof rating of the flysheet?
The flysheet has a specified PU 5000 mm hydrostatic head. The outer tent floor is also specified at PU 5000 mm, while the inner tent floor is rated PU 3000 mm. Finished-tent waterproof performance also depends on seam construction, assembly and testing.
What materials are used in the inner tent?
The inner tent uses 75D 190T breathable polyester and 50 g/m² B3 mesh, with a 75D 190T polyester floor coated to PU 3000 mm.
What type of frame does the tent use?
The primary tunnel structure uses three Ø14 mm aluminum poles. Additional aluminum poles are specified for the vestibule and entrance arrangement.
Is the tent suitable for family camping?
Yes. Its two-bedroom and shared living-area configuration is designed for family camping and longer campsite stays. The actual sleeping capacity should be confirmed against the intended sleeping arrangements and equipment requirements.
Can NastoCamp customize this family tunnel tent?
Yes. NastoCamp can discuss OEM / ODM customization of fabrics, coatings, dimensions, layouts, pole specifications, colors, branding and packaging, subject to project evaluation.
